Thickness：0.12-4.0mm
Width:20-1250mm
Zinc Coated:30-275g/m2
Grade:DX51D,DX52D,SGCC,ASTM A653,JIS,G3302
Tel : 86-15194159521
E-mail: best@zebrasteel.cnGalvanized Steel Coil Manufacturer

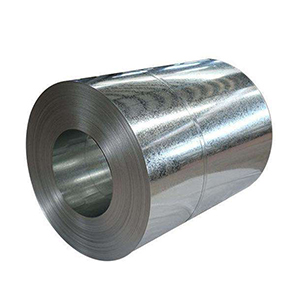

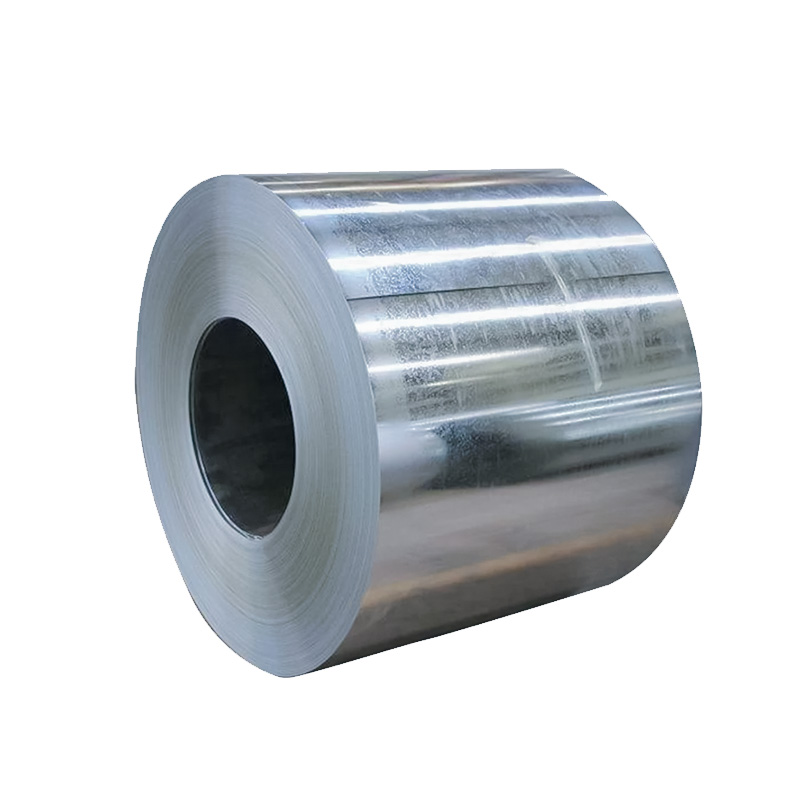

Galvanized steel coil: Galvanized steel sheet through continuous hot-dip coating to improve their service life.

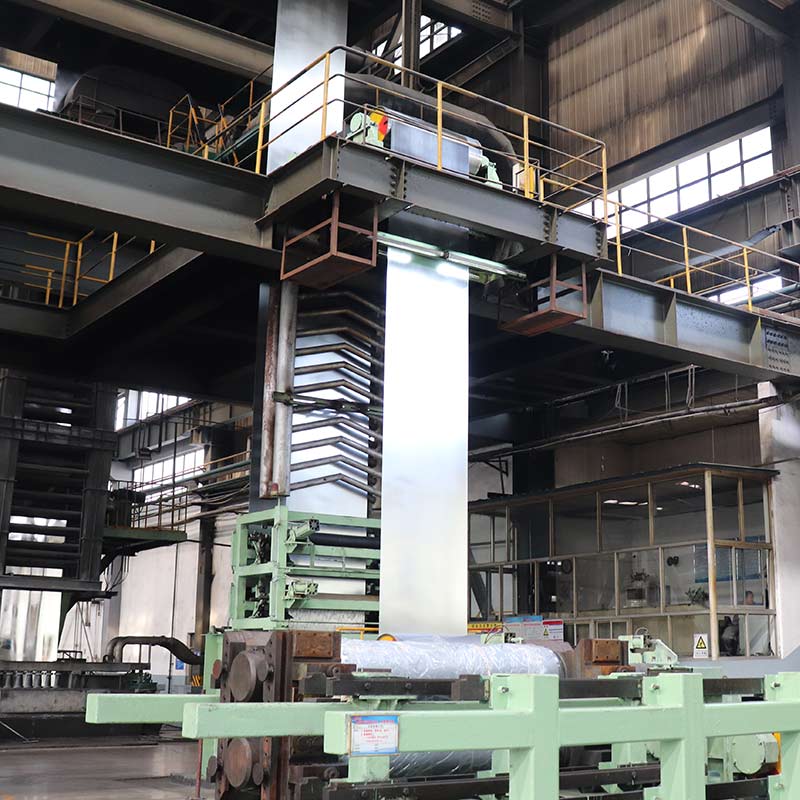

Technology: Immersing the thin steel plate in the molten zinc bath, and adhering a layer of zinc thin steel plate on the surface. It is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously immersed in the zinc-melted plating tank to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also made by the hot-dip method, but it is heated to about 500 °C immediately after exiting the tank to form an alloy film of zinc and iron. This galvanized steel coil has good paint adhesion and weldability.

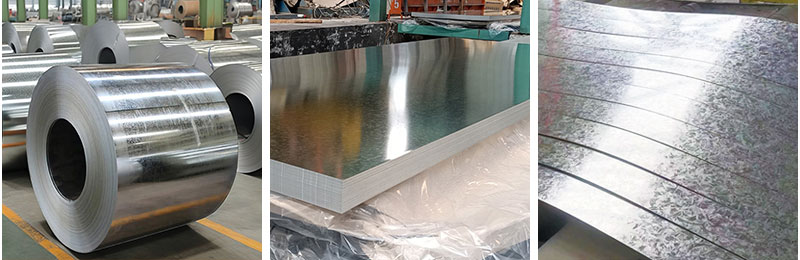

Coil/Sheet/Strip

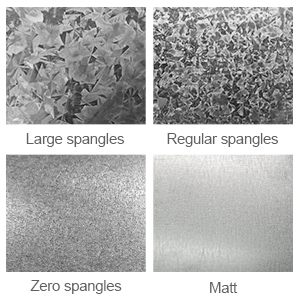

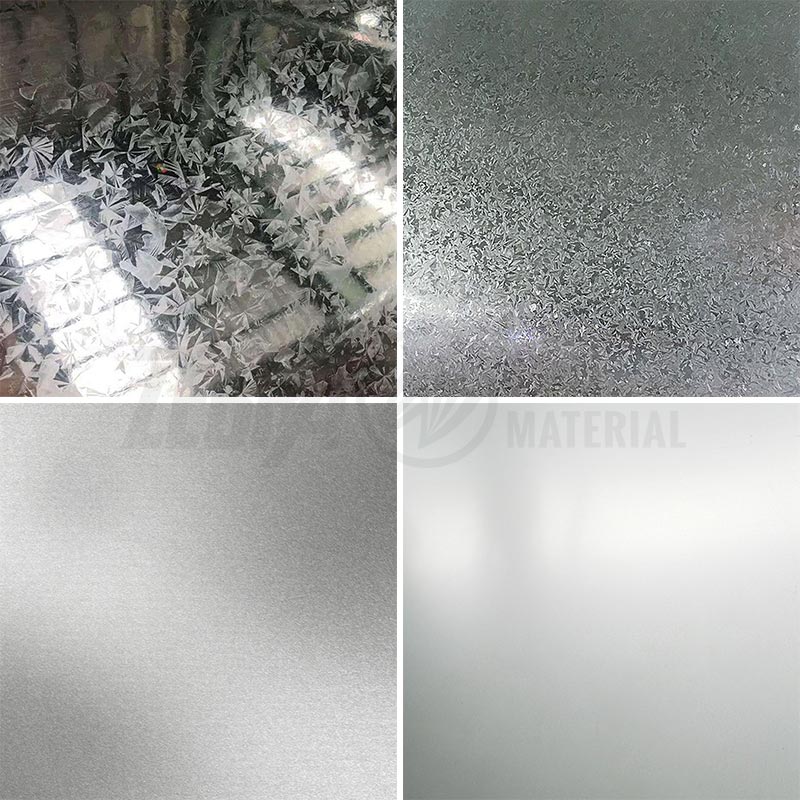

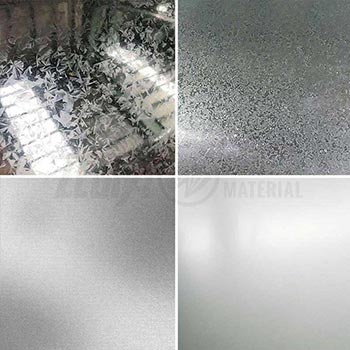

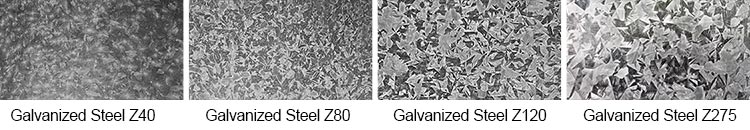

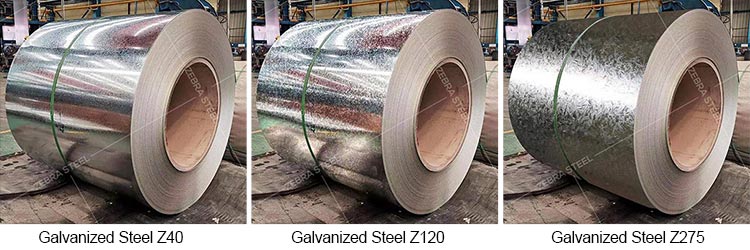

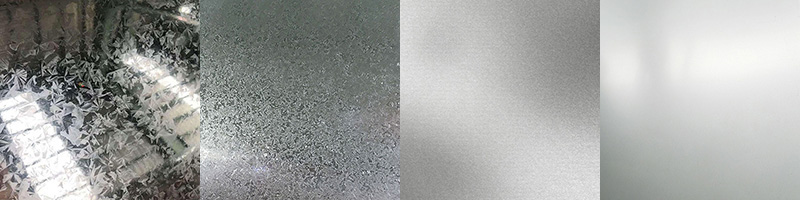

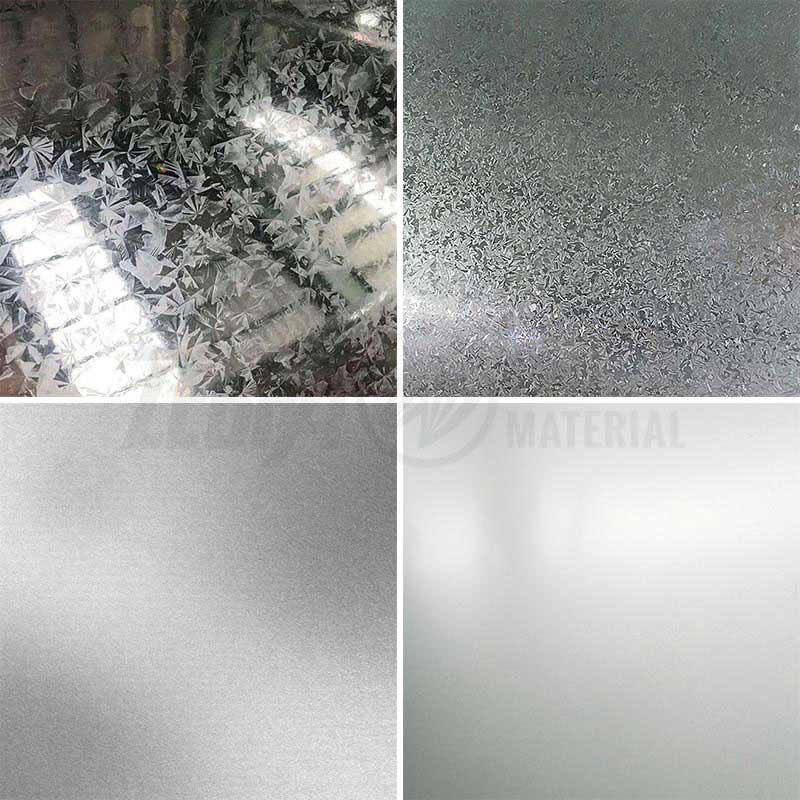

Big Spangle/Regular Spangle/Non Spangle/Bright
Cutting Length，Slitting，Forming(rorrugated roofing)
Name

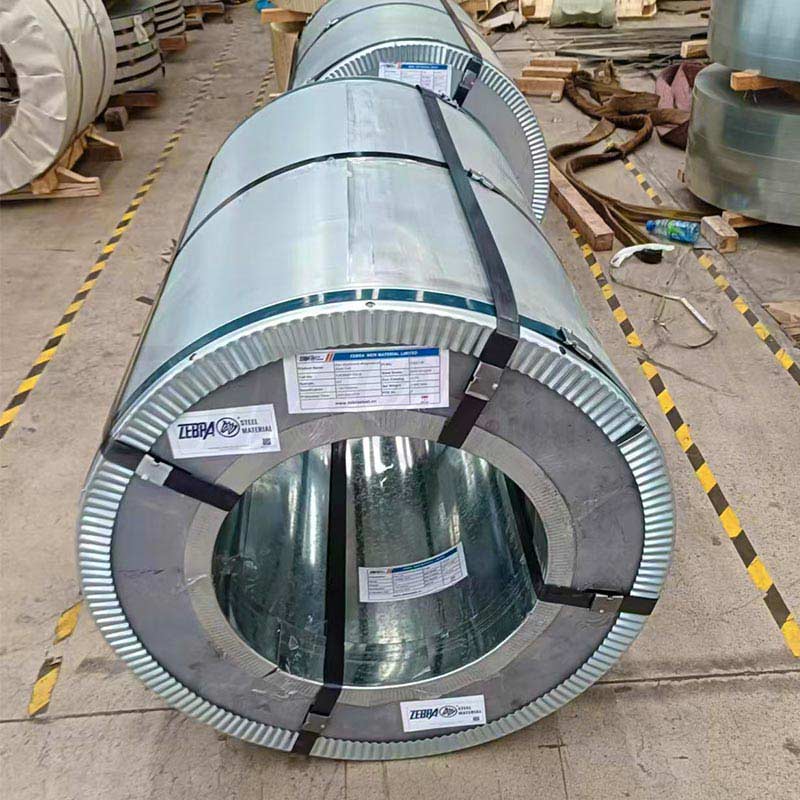

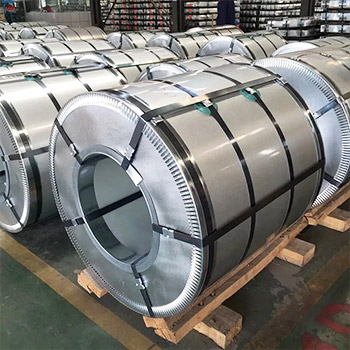

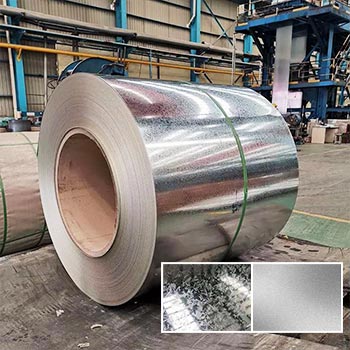

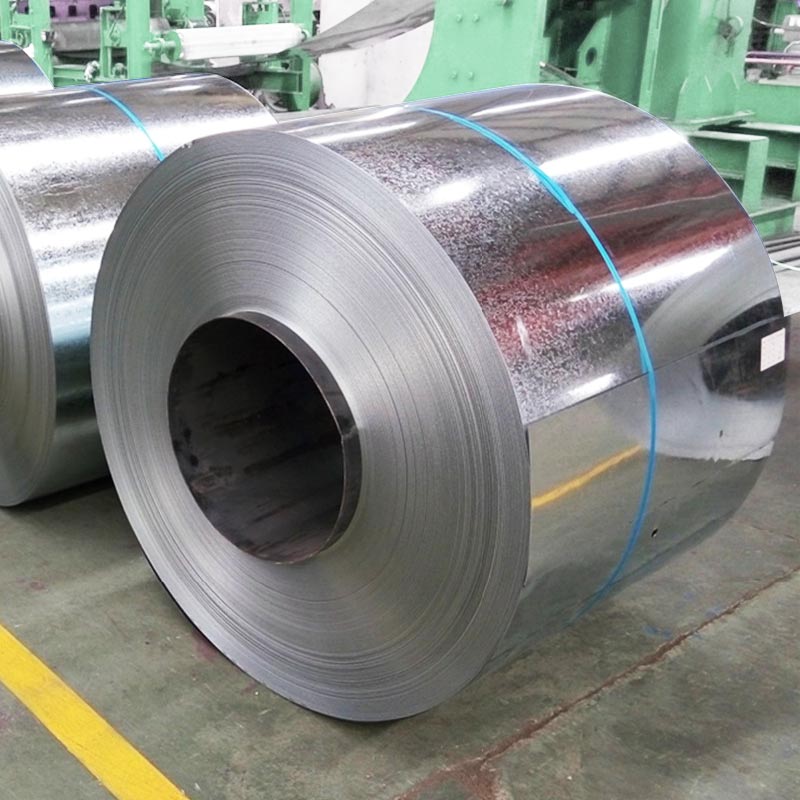

Hot Dipped Galvanized Steel Coil(Sheet/Strip)
Thickness
0.12-4.0mm Customized
Width
600-1250mm (Coil) / 20-600mm(Strip)
Zinc Coating
30-275g/m2 (hot-dip)(provide electroplating and alloying galvanizing)
Grade
DX51D,DX52D,SGCC,ASTM A653,JIS,G3302
Technique
Cold rolled and Hot rolled
Coil ID
508/610mm
Coil Weight
3-8 ton
Processing services
Tel :0086-531-88255090 Mob: 0086-15194159521
Email: export@zebrasteel.cn Whatsapp:0086-15194159521
Galvanized steel
The thickness of the zinc layer is large: usually the thickness of the zinc layer can reach 60-80 microns, or even thicker, so the anti-corrosion performance is excellent.
Strong adhesion: The zinc layer forms a good metallurgical bond with the steel plate substrate, with strong adhesion and resistance to detachment.

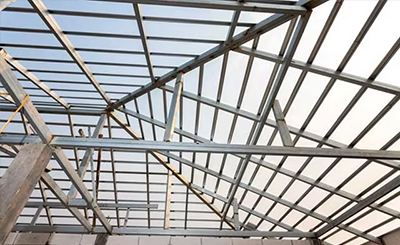

Widely applicable: Suitable for outdoor buildings, bridges, highway guardrails and other environments that require long-term corrosion resistance.
Grade
Yield Strenth（MPA）
Tensile Strength（MPA）
Elongation（%）
DX51D+Z
--
270-500
≥20
DX52D+Z
140-300
270-420
≥22
DX53D+Z
140-260
270-380
≥26
DX54D+Z
140-220
270-350
≥30
S220GD+Z
≥220
≥300
≥18
S250GD+Z
≥250
≥330
≥17
S280GD+Z
≥280
≥360
≥16
S320GD+Z
≥320
≥390
≥15
S350GD+Z
≥350
≥420
≥14
S400GD+Z
≥400
≥470
--
S500GD+Z
≥500
≥530
--
S550GD+Z
≥550
≥560
--

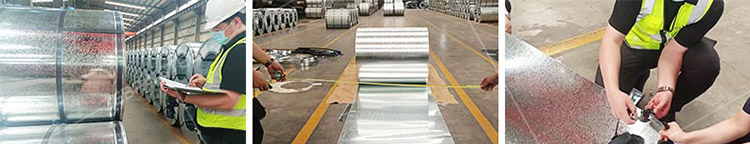

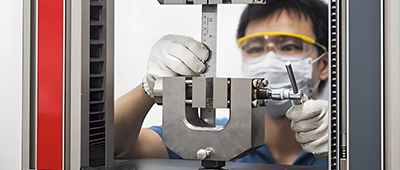

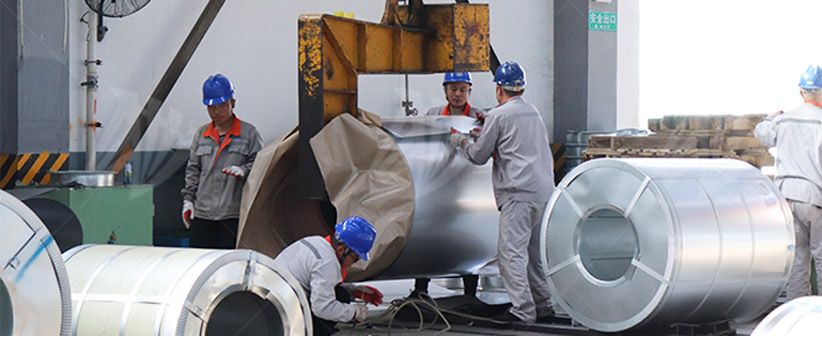

Galvanized coil will be carefully inspected before leaving the factory.

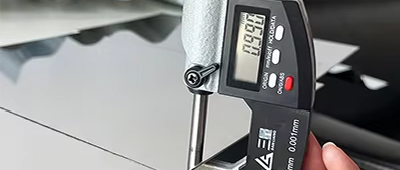

Thickness Test
Measure the actual thickness of the steel plate

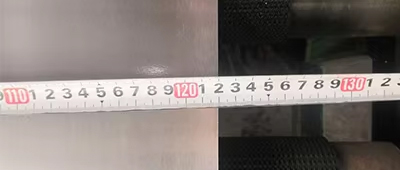

Width Test
Width error not exceeding 1%

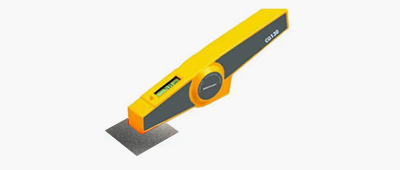

Zinc Coating Test
No cutting corners on zinc weight
 |

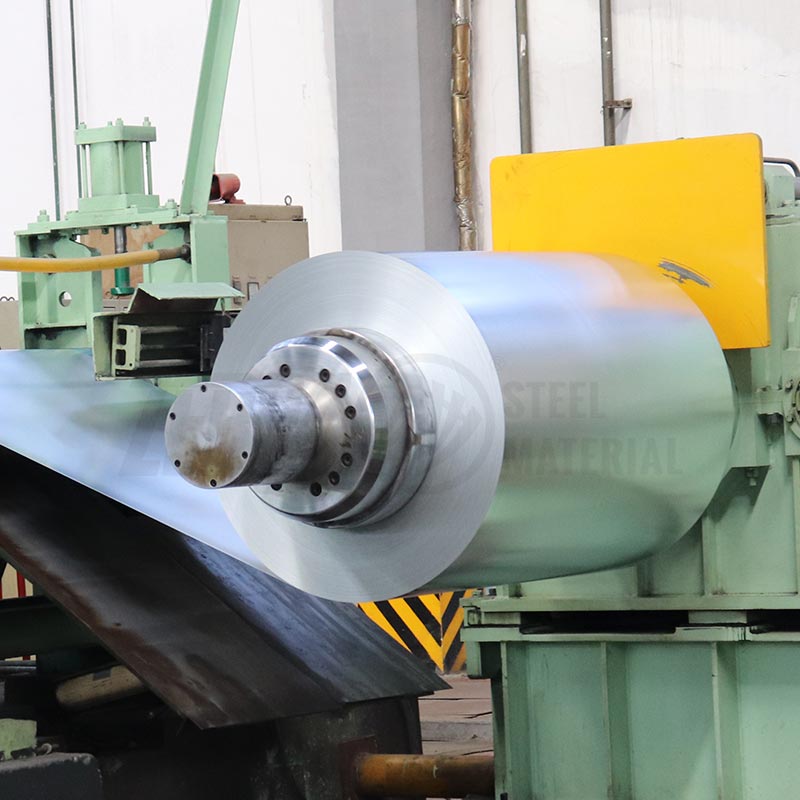

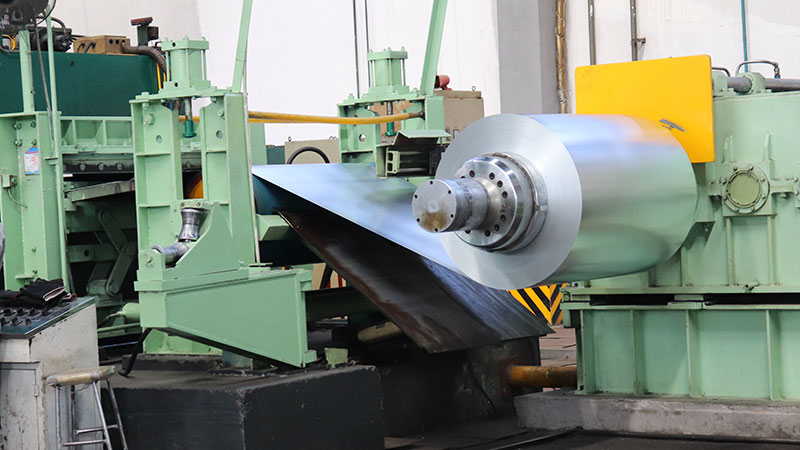

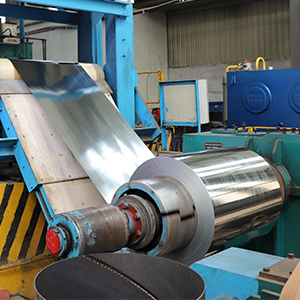

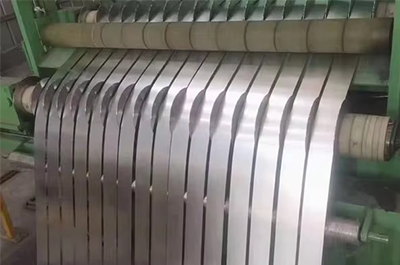

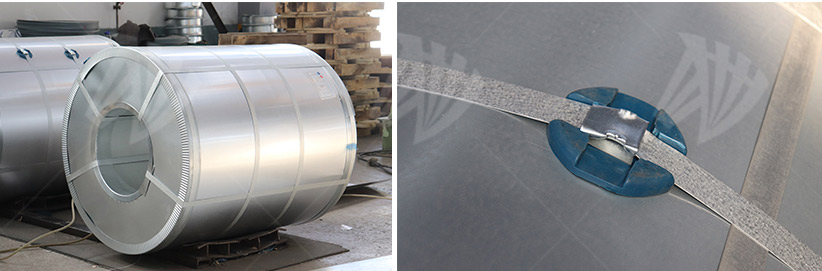

Steel coil slitting
Slitting into narrow strip of different sizes.
|
 |

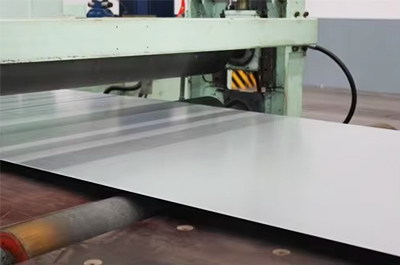

Cutting length
Cut it into steel plates of the required size.
|
 |

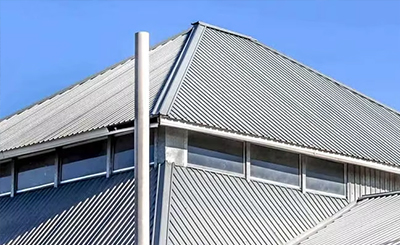

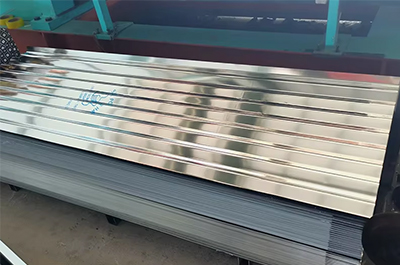

Forming roofing sheet
Forming roofing sheet with the desired shape.
|
|
|

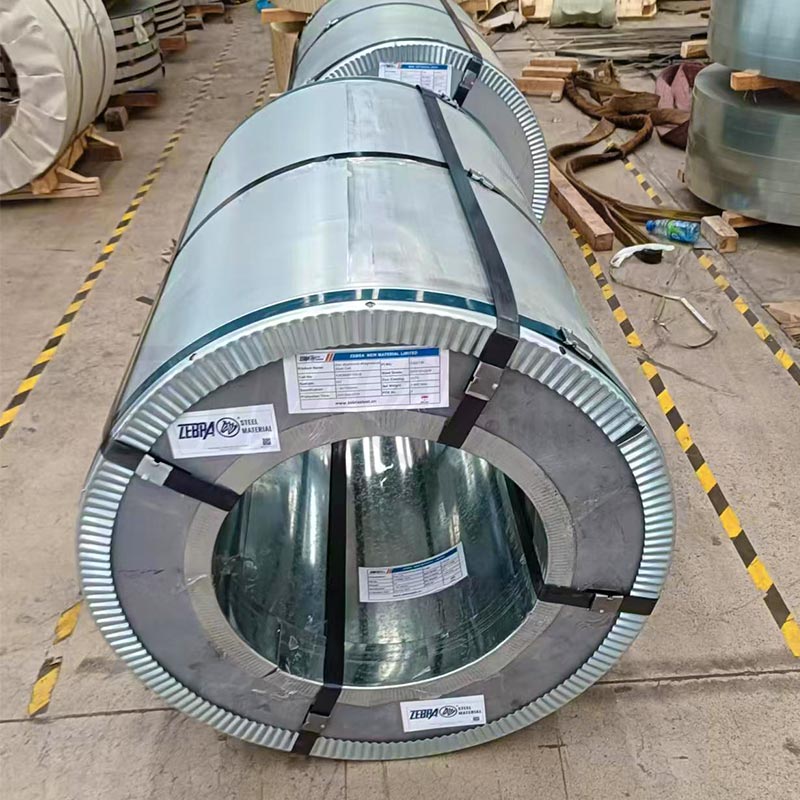

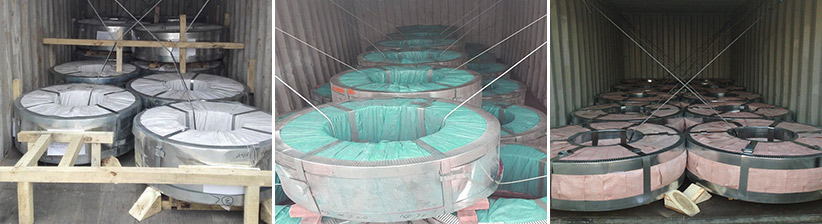

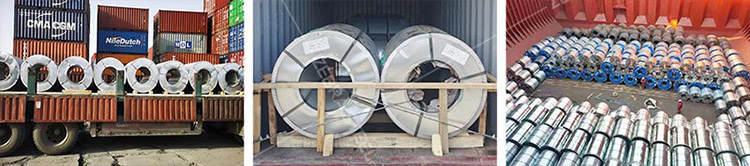

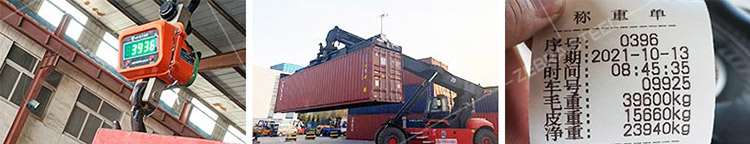

20ft containers：The maximum total weight is usually around 28 tons, with a cargo weight of approximately 26 tons.
40ft containers：The maximum total weight is usually around 30.48 tons, with a cargo weight of approximately 26 tons.
The total weight limit varies depending on the country and region, so please follow local regulations to avoid losses.
About Zebra Steel，China Steel Manufacture，We have a factory of 23600m2, 11 steel production lines, and export 3 million tons of steel annually to 86 countries.
1.What is Galvanized Steel HS Code?
721049,Check tariffs before ordering from China.
2.The service life of galvanized steel coils?

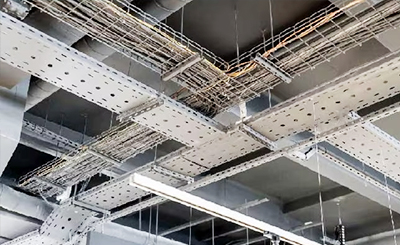

The life of galvanized steel coil depends on the end application and environment, as well as the weight of zinc. For example,the life of Z275 galvanized roof in a marine environment is 5 years.The life of Z180 cable tray in an indoor environment is 15 years.
3.The price of galvanized steel coils?
The price of galvanized steel coil depends on the raw material hot-rolled, the zinc weight, and the width and thickness of the coil.
4.Galvanized steel coil could be oiled?
Yes, it could be oiled.8-20g per square meters. Oiling can prevent the oxidation of galvanized sheets in a short time.
5.Does the product have quality inspection before loading?
Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.weaccept the third party inspection absolutely.
6.What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
