PPGI / PPGL

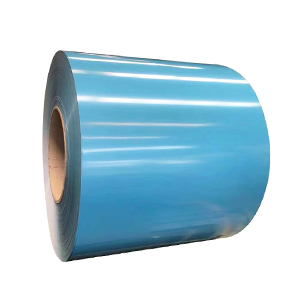

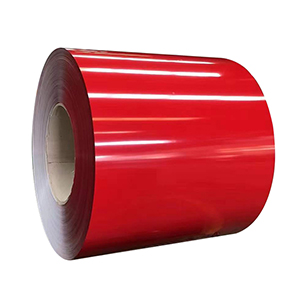

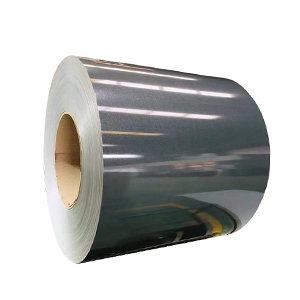

  • PPGI Prepainted Galvanized Steel Coil
  • PPGI Prepainted Galvanized Steel Coil
  • PPGI Prepainted Galvanized Steel Coil
  • PPGI Prepainted Galvanized Steel Coil

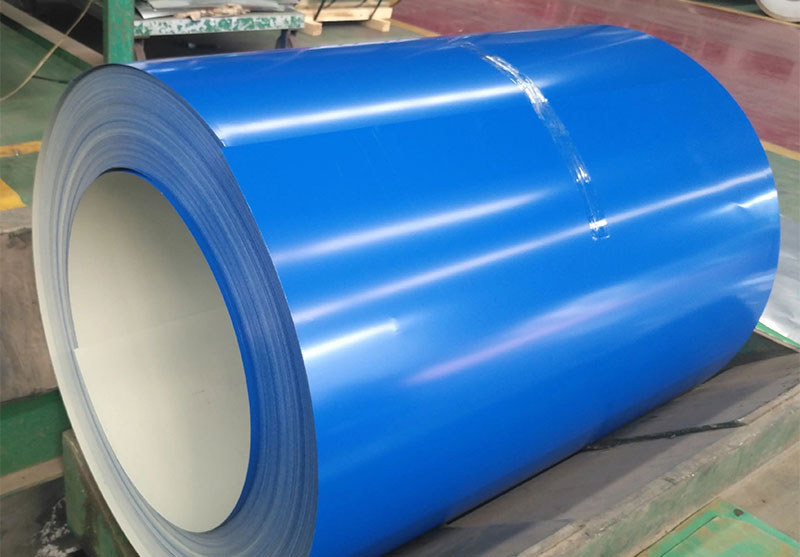

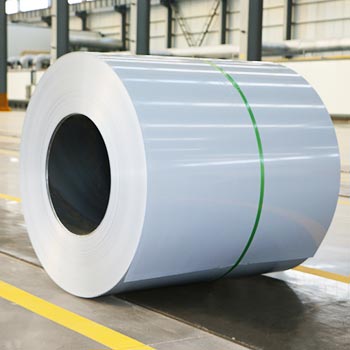

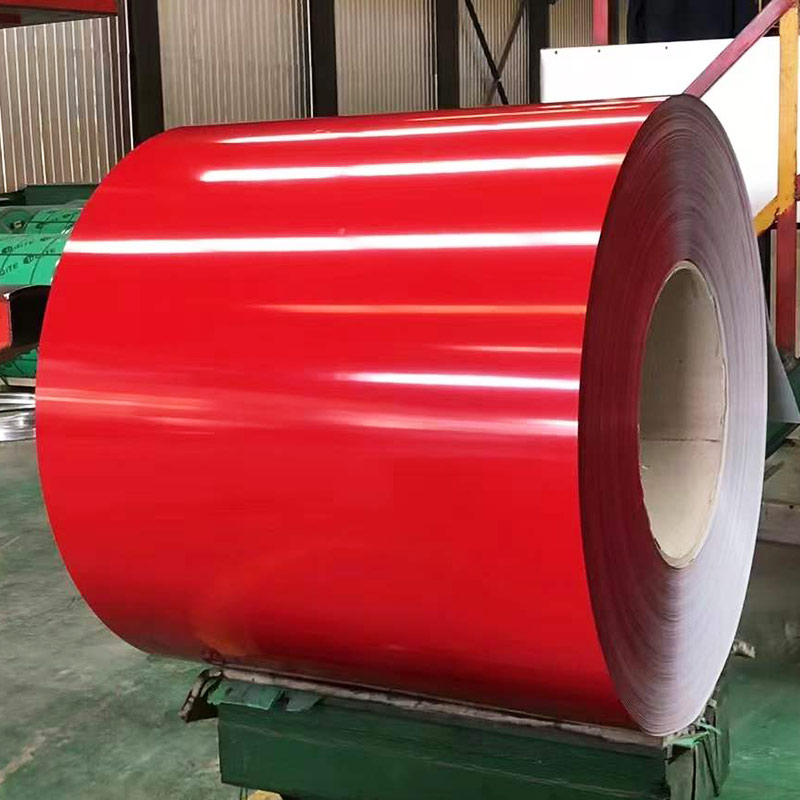

PPGI Prepainted Galvanized Steel Coil

Thickness:0.12-2.0mm

Width:600-1250mm or Customized

Front & Back Coating:Double coated & Double drying

Painting: top:10-35microns   back:5-25microns

Grade:CGCC,CGCH,DX52D,DX53D,G550,DX51D




Tel : 86-15194159521

E-mail: best@zebrasteel.cn
Send us your request and we will get in touch with you.

Description

Prepainted Galvanized steel Coil Manufacture

No cutting corners on quality and weight

Prepainted galvanized steel Coil(PPGI) Also known as color coated steel coil, is a type of sheet made of steel coil as the substrate, coated or laminated with various organic coatings or plastic films on the surface. Common substrates include cold-rolled sheets, galvanized sheets, galvalume sheets, high aluminum alloy sheets, and stainless steel sheets.

PPGI Prepainted Galvanized Steel Coil

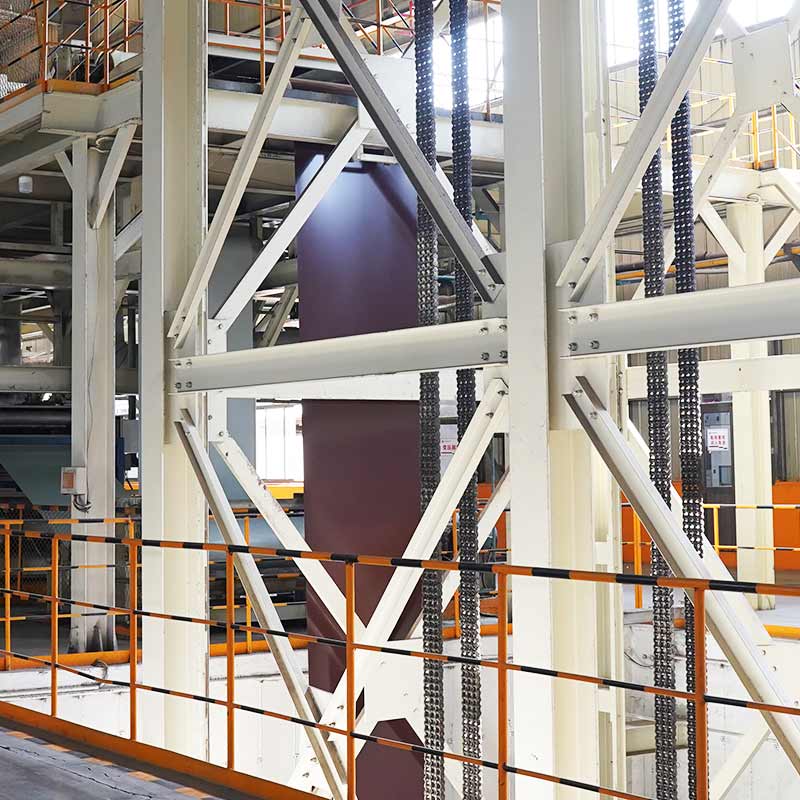

Production process:

Surface pretreatment: Chemical degreasing and chemical conversion treatment are applied to the substrate to enhance the adhesion of the coating.
Application of organic coating: Apply one or more layers of organic coating on the surface of the substrate.
Baking curing: Bake the coated board to cure the coating.

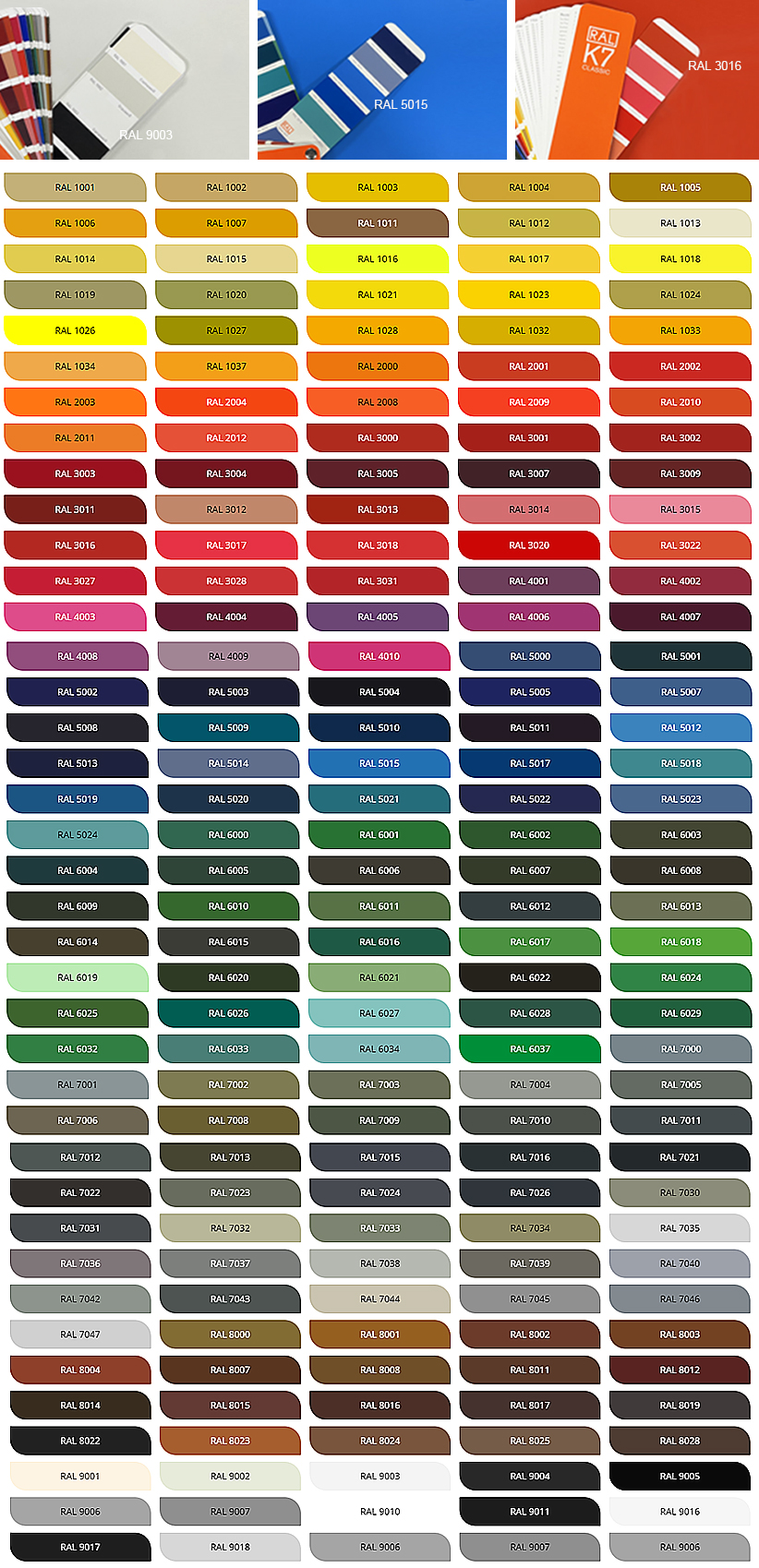

RAL color customized

PPGI Steel Coil Color

Provide a full range of color options, or produce according to samples

Is that all? No! We have more varieties

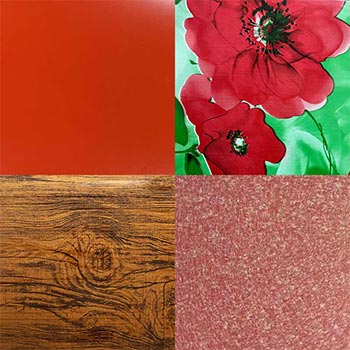

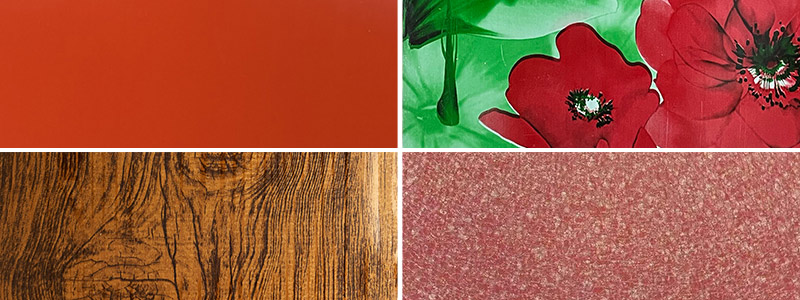

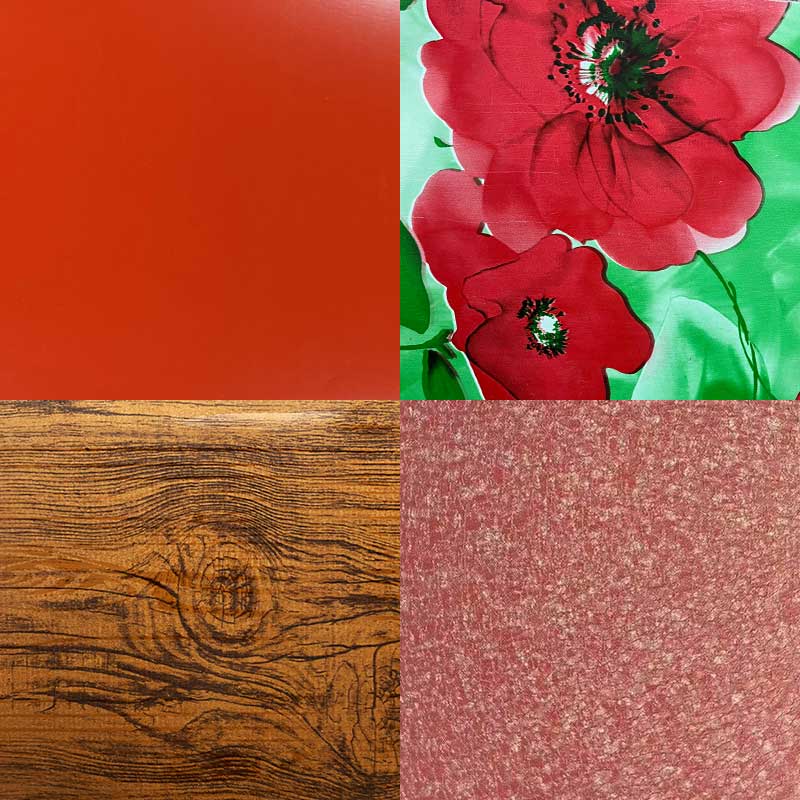

PPGI Steel Coil Surface Include The Following Types

Prepainted galvanized steel Coil

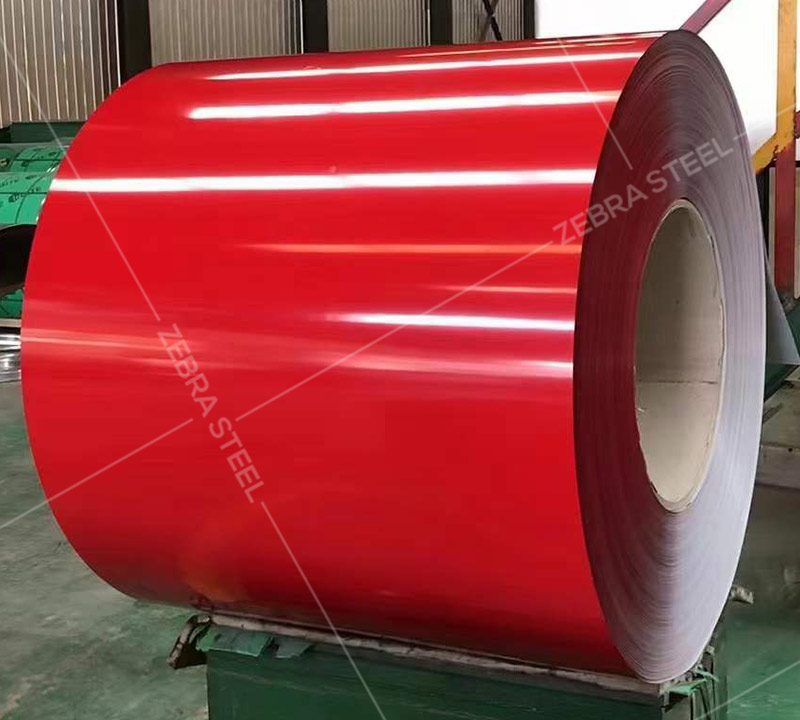

Smooth(Bright):

The surface is smooth and has a mirror effect, presenting a bright luster.

Prepainted galvanized steel Coil matter smooth


Matte(Smooth):

The surface does not have a significant mirror effect, presenting a soft luster.

Prepainted galvanized steel Coil matter frosting

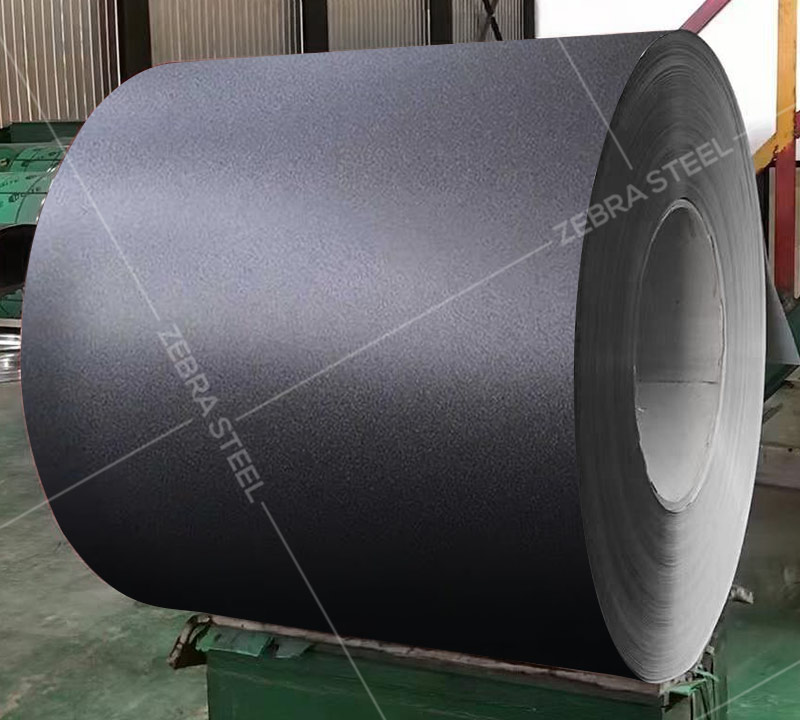

Matte(Wrinkled):

The surface is treated with a matte finish, giving it a rough texture and presenting a delicate sugar like effect.

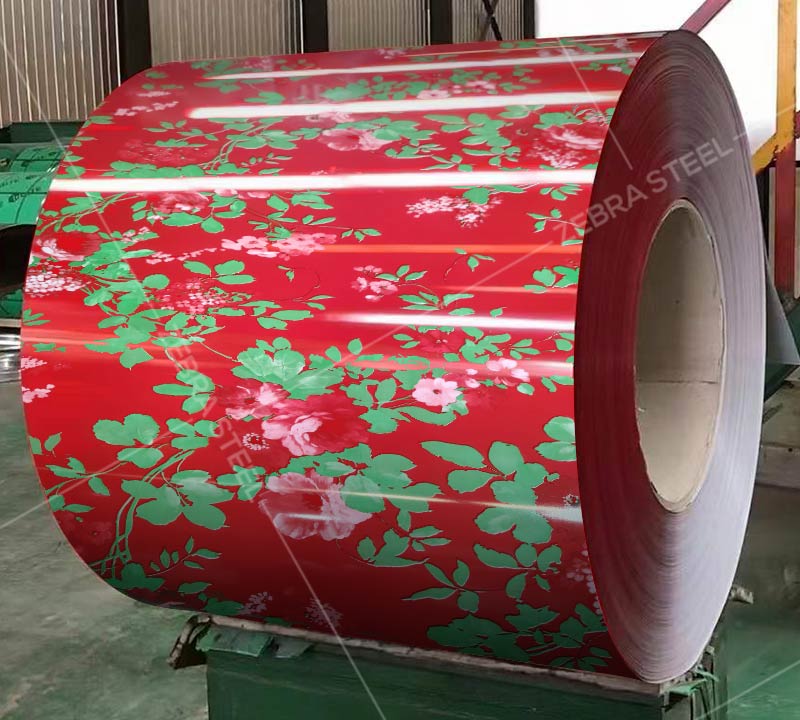

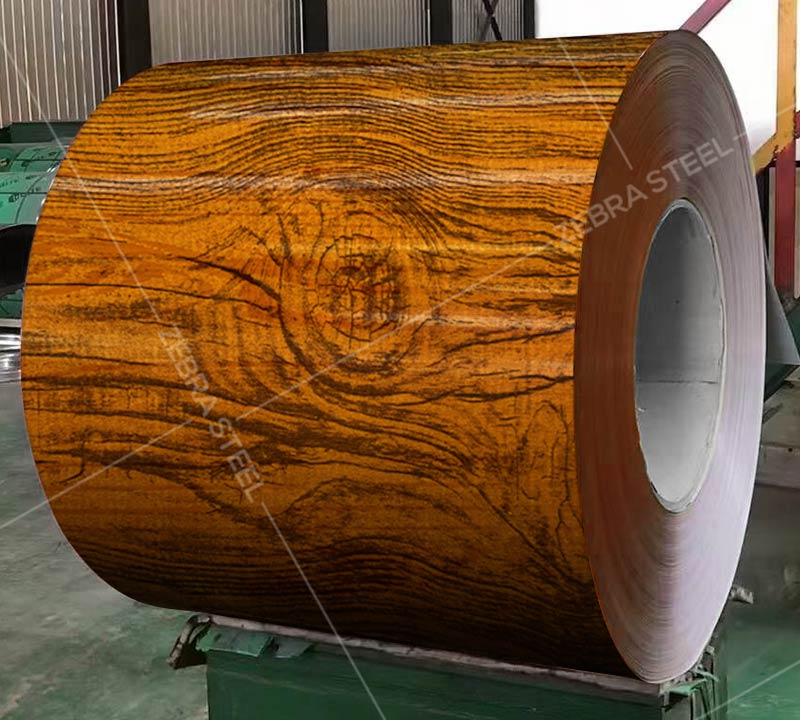

Prepainted galvanized steel Coil pattern

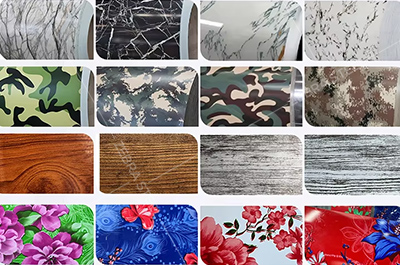

Pattern:

The surface is embossed to present various patterns and textures, commonly including mesh, wood grain, stone grain, etc.









PatternPlease choose your favorite color and type according to your needs.

Parameter

Name Prepainted galvanized steel coil(PPGI Steel Coil)
Thickness 0.12-2.0mm
Width 600-1250mm

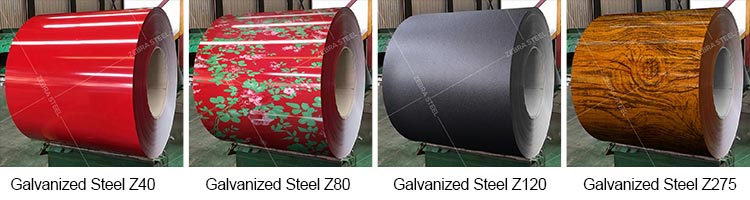

Zinc Coating 20-275g/m2
Front Painting 10-35 microns or Customized
Back Painting
5-25 microns or Customized
Coating Process

Front:double coated & double drying

Back:double coated & double drying,single-coated & double drying

Coating types

Top paint:PVDF,HDP,SMP,PE,PU

Primer paint:Polyurethane,Epoxy,PE

Back paint:epoxy.modified polyester

Grade
CGCC,CGCH,DX52D,DX53D,G550,DX51D
Test Report
Provided



Prepainted galvanized steel coil

1.Lightweight texture: Due to its substrate being mostly metal coil, the overall weight is relatively light.
2.Corrosion resistant and durable: The surface coating has good corrosion resistance, which extends the service life of the board.

3.Good decorative properties: The surface can be coated with various colors of paint, suitable for different decorative needs.

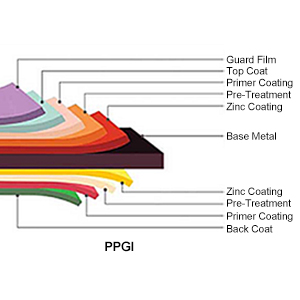

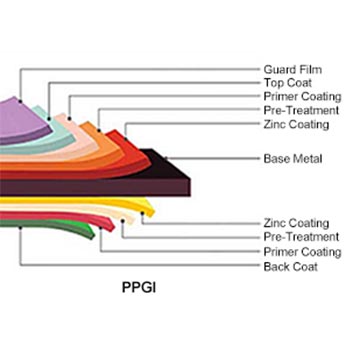

Prepainted galvanized steel Sectional


Prepainted galvanized steel Sectional

Base Metal (Galvanized Steel): The core of the coil is galvanized steel, which is steel coated with a layer of zinc to provide corrosion resistance.
Chemical Treatment Layer: This layer is applied to the galvanized steel to improve adhesion of the subsequent coatings and to enhance corrosion resistance.
Primer Coating: A primer coating is applied on top of the chemical treatment layer. This layer further enhances adhesion and provides an additional barrier against corrosion.
Topcoat (Finish Coat): The topcoat is a colored paint layer that provides both aesthetic appeal and additional protection.
Back Coat (Optional): On the underside of the coil, a back coat may be applied.

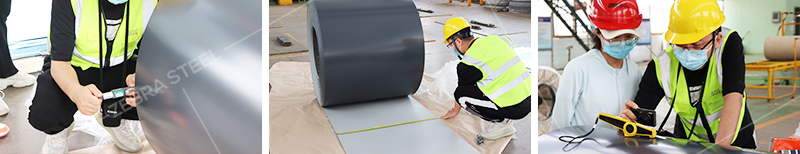

Product quality inspection

PPGI Steel Width Test


Width Test

Check whether the width of the steel coil is consistent with the contract agreement, with an error not exceeding 1%

PPGI Steel Thickness Test


Thickness Test

Using sampling methods and machine detection of thickness for more accurate data

PPGI Steel Paint film thickness test


Paint film thickness test

Use the eight point test method to measure the thickness of the front and back paint film

PPGI Steel Impact resistance test


Impact resistance test

Take samples of the color coated board and conduct impact testing to check for any peeling of the paint film

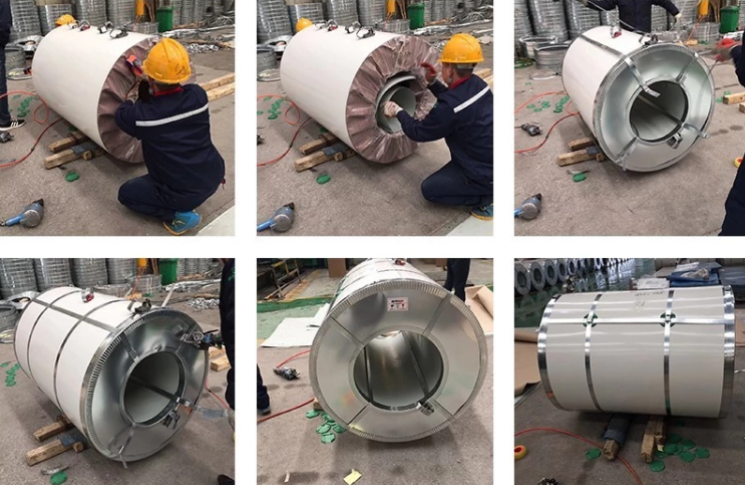

Packaging and Shipment

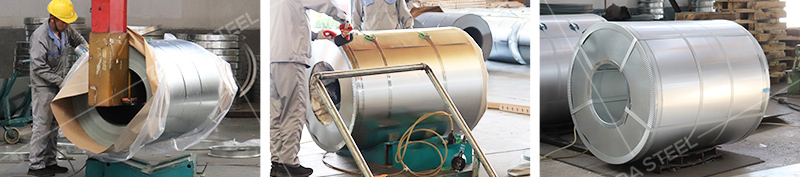

Hot Dipped Galvanized Steel Coil Packing



Coil and Strip Packing

1:Metal protective ring
2:Waterproof wrapping paper
3:Buckle
4:Metal band

By Tianjin port, Qingdao port to transport.






Steel Coil Packing

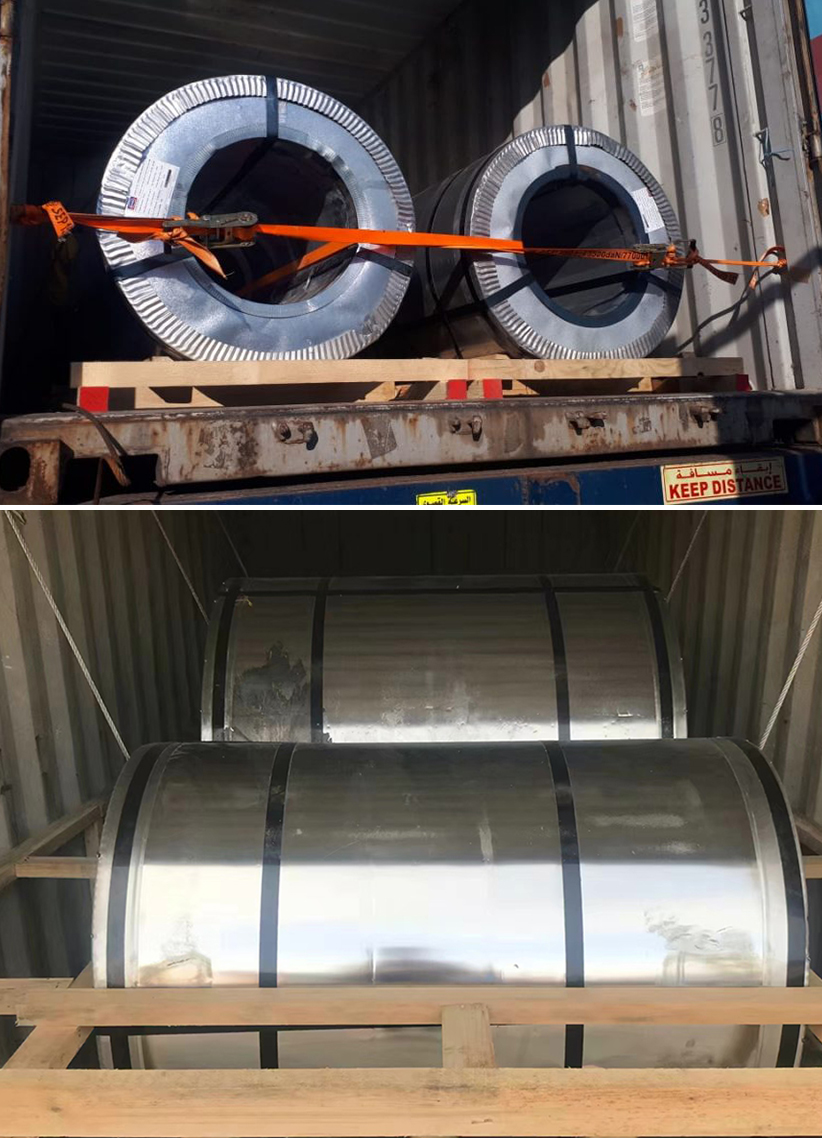

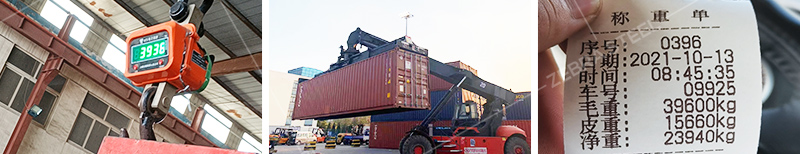

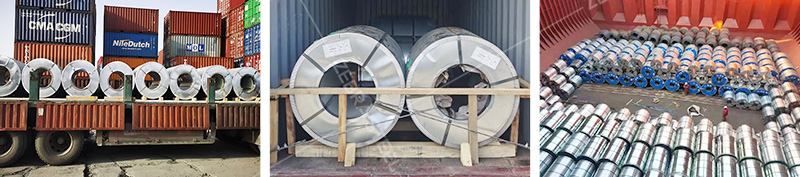

Hot Dipped Galvanized Steel Coil Shipment

Suggestions for booking containers

20ft containersThe maximum total weight is usually around 28 tons, with a cargo weight of approximately 26 tons.

40ft containersThe maximum total weight is usually around 30.48 tons, with a cargo weight of approximately 26 tons.

The total weight limit varies depending on the country and region, so please follow local regulations to avoid losses.

Questions and Answers

About Zebra SteelChina Steel Manufacture,We have a factory of 23600m211 steel production lines, and export 3 million tons of steel annually to  86 countries.China Steel Manufacture Factory

1.What is Prepainted Galvanized Steel HS Code?

The HS Code for prepainted galvanized steel coil(PPGI Coil) with a thickness of <1.5mm and a width of 600mm and above is 721070.

Note: If importing from China, please check the import tariff of your local country.


2.Possible Coating Options?

Polyester (PE):Good flexibility, color retention, and cost-effectiveness.
Silicone-Modified Polyester (SMP):Better weather resistance and color stability compared to standard polyester.
Polyvinylidene Fluoride (PVDF)Exceptional durability, chemical resistance, and color retention.


3.The price of prepainted galvanized steel coils?

the raw material of steel,
the weight of zinc of the galvanized substrate used,
the type of coatings used,
the thickness of the top coat and back coat,
the width and thickness of the steel coil to influence the price.

4.Does Pre-painted Galvanized Coil Have a Protective Film?

The protective film is a transparent or colored plastic film coated on the surface of the pre-painted galvanized steel coil. The purpose is to prevent scratches on the painted surface paint during cold roll forming.
Our plastic film thickness is 30 microns, 40 microns, 50 microns, 60 microns, and 80 microns.


5.Does the product have quality inspection before loading?

Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.weaccept the third party inspection absolutely.


6.What product information do I need to provide?

You need to provide the grade, width, thickness, coating,color, and the number of tons you need to purchase.
